🌟 Champion Series – Automatic Self-Cleaning Filter 🔧 Engineered by &
Welcome to the future of industrial filtration. Our Champion Series Automatic Self-Cleaning Filter is designed for cooling towers, power plants, HVAC systems, and water treatment facilities that demand uninterrupted performance and zero manual maintenance. 💧⚙️
Whether you’re battling scale, sediment, or suspended solids, this filter is your frontline defense—automated, intelligent, and industrial-grade.
🚀 How It Works

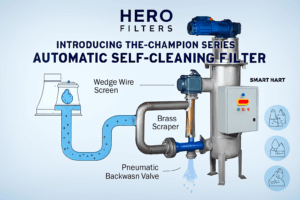

Dirty water enters the filter housing and flows outside-in through a high-precision SS-316 wedge wire screen 🧵. Particles are trapped on the outer surface, while clean water passes through uninterrupted.
- 🔄 A motorized brass scraper rotates internally, gently scraping debris off the screen.
- 💨 A pneumatic backwash valve opens momentarily, creating a reverse flow that flushes contaminants out.
- 📊 A SMART HART DP transmitter continuously monitors pressure differential, triggering cleaning cycles automatically.
This dual-stage cleaning process ensures maximum uptime, minimal maintenance, and consistent filtration quality—even in the harshest industrial environments.
📐 Technical Specifications – Reference Values (Customizable) These specifications are for reference only. We offer full customization to meet your specific flow rates, pressure conditions, micron ratings, and material preferences. 🛠️💡
- 💧 Flow Rate: 350 m³/hr per unit (customizable)
- 🧵 Filtration Grade: 200 microns (range: 3 to 2400 microns)
- 🔧 Working Pressure: 2 bar(g)
- 🔩 Design Pressure: 3 bar(g)
- 🏗️ Housing Material: Carbon Steel IS 2062 Gr. B
- 🎨 Internal Coating: Epoxy coated
- 🛡️ External Coating: Polyurethane painted (180 DFT)
- 🧼 Surface Preparation: SA 2.5 Standard
- ⚙️ Motor: 0.37 KW Geared Motor (Crompton/Bonvario)
- 📊 DP Transmitter: SMART HART
- 🌡️ Operating Temperature: Up to 80°C
- 🛠️ Warranty: 3 Years on Filter Element; 1 Year on Motor & Valves
🔗 Learn more at or
🎯 Key Benefits
- ✅ Fully automatic operation – no manual cleaning
- ✅ Continuous flow – cleaning without interruption
- ✅ Smart monitoring – real-time pressure tracking
- ✅ Rugged construction – built for industrial durability
- ✅ Customizable micron ratings – from 3 to 2400 microns
- ✅ Made in India 🇮🇳 – proudly manufactured by
🌍 Applications
- 🏭 Cooling Towers
- 🌬️ HVAC Systems
- ⚡ Power Generation Plants
- 🧪 Chemical & Petrochemical Units
- 💧 Water & Wastewater Treatment
🧰 Build Your Filter
Every system is unique—so your filter should be too. Use our configurator to specify your flow rate, pressure, micron rating, and material preferences. We’ll build it to match your exact requirements.
Build Your Filter Tool
- Flow Rate: 350 m³/hr
- Working Pressure: 2 bar(g)
- Filtration Grade: 200 microns
- Design Pressure: 3 bar(g)
- Housing Material: Carbon Steel
- Surface Preparation: SA 2.5 🔘
